The Trike That Grows with Your Needs

Gekko fxs: Our Best Trike for Kids with Special Needs and Great Trike for Short People

The Gekko fxs is the adaptive trike that grows with your kid! There can be many reasons why a conventional upright bike is not suitable for your child. At HP Velotechnik, we believe that cycling should be a natural part of every childhood and also be safe and convenient for short adults. That’s why this tricycle now also makes children with special needs smile – and you, as parents, will certainly do the same, too.

The Gekko fxs has been specially developed for children, young people with disabilities and other short persons and can easily be adapted to fit body sizes from 115 to 180 centimeters (4′ to 5’11”). If your child has difficulty maintaining his or her balance on an upright bike, then in many cases he or she will be able to sit on this stable tricycle securely, even at a standstill. And if it is otherwise difficult for your child to perform a smooth pedaling movement, it will be much easier to train and encourage when your child is safely seated in the comfortable recumbent seat of this special needs tricycle. This is also recognized by the German health insurance system: Thanks to the medical aid number (22.51.02.0061), it is now possible in many cases to cover the costs.

Safe Mobility

Our Smallest Tricycle for People with Special Abilities

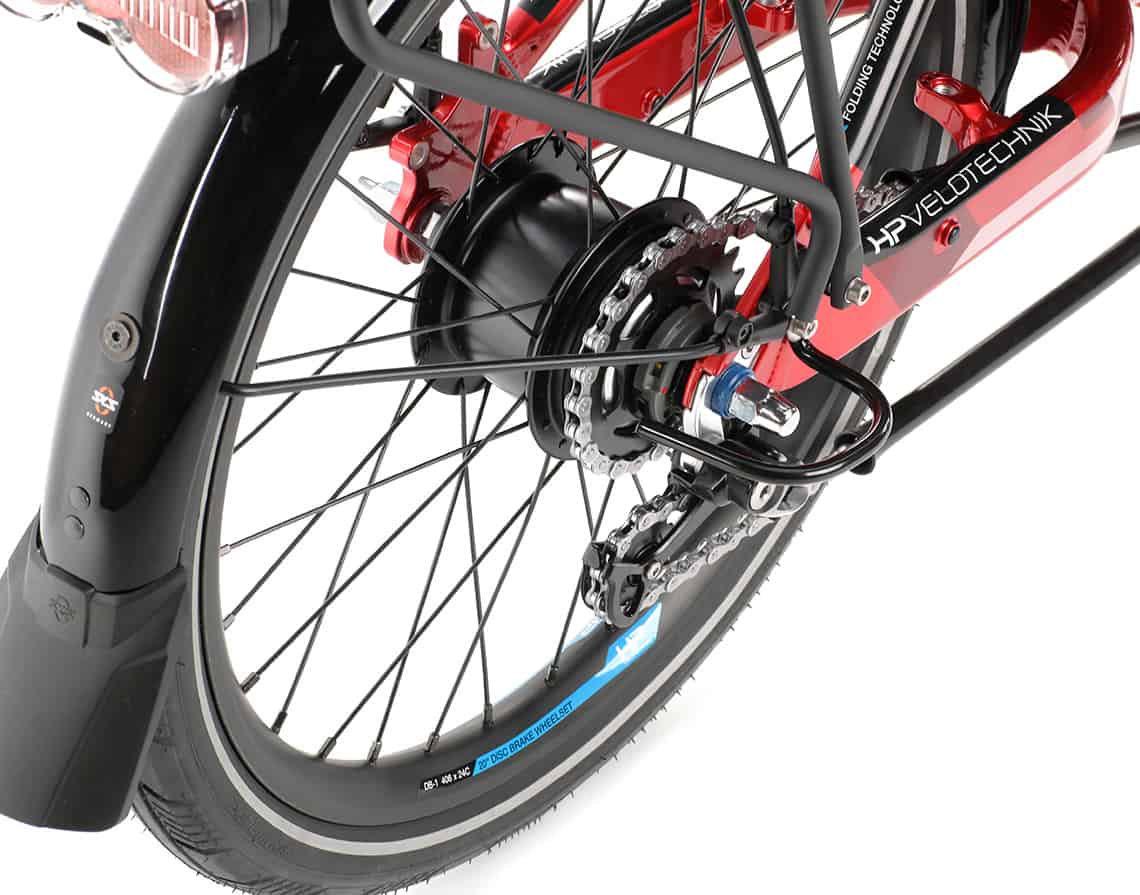

Your child can lean back, relax and always see the two front wheels to stay aware of the width of its trike, also when riding in narrow passages. Because the Gekko fxs is designed with only one rear wheel at the back just like a regular children’s bike, we can install individually suitable, easy-to-use shifting technology from our modular system for your kid. Meanwhile, your child can look forward to the full range of beautiful bicycle bags or practical bicycle baskets thanks to the robust standard luggage carrier to transport his or her favorite items.

Especially for handicapped children, parents often hope for more normality, more mobility and the greatest possible independence – the adaptive Gekko fxs rehabilitation and therapy trike can make an important contribution here. Isn’ it amazing that with the Gekko fxs trike, so much good for health and quality of life can be such fun to ride for your kid, too!

The Gekko fxs will stand and ride particularly safely – even for inexperienced riders in fast curves or people with a limited sense of balance. The “tadpole” tricycle design with the two wheels at the front and the rider’s low center of gravity ensure particularly good stability when braking in tight turns. The crossbar of the reinforced frame connects the two front wheels elegantly while sweeping significantly further rearwards to the seat than on other trikes. This creates a lot of space between the two front wheels for easy boarding, even with the special needs of physically impaired persons. Special advantage: Your child can see the width of his vehicle directly from the two front wheels at any time – safer for himself and others than would be possible with conventional rehab bikes or simple bicycles with support wheels at the rear.

This tricycle enables the child to move independently in many cases despite its handicap. At the same time, physiotherapeutic therapy is enhanced and individual support and equilibrium reactions, as well as movement coordination, are trained. In the recumbent bike position, your child can pedal with less strain on the knees and can precisely regulate the muscular load. The high pedal position of the Gekko fxs above the seat enables effective power support on the backrest and gives the driver a relaxed, streamlined posture. The open position of the upper body prevents constricting pressure on the abdominal cavity and the organs. Instead, the lungs can fully unfold.

How many bikes does your child need to grow up? With HP Velotechnik, the answer is simple: Exactly one! Thanks to the Triple Vario design for body sizes between 115 and 180 centimeters (4′-5’11”), the Gekko fxs trike simply grows with your child’s height.

What's Most Important for Your Kid

Lots of Riding Pleasure Included by Default!

Your child can expand his or her range of activities, gain new experiences in terms of location and increase his or her zest for life and self-esteem. The significant health benefits of recumbent cycling for the cardiovascular and nervous systems when training symmetrical movements, the effective relaxation of the spine, arms and shoulder girdle musculature and the effective physical-motor stimulation of adolescents unfold their advantages above all when the vehicle chosen is enjoyed with enthusiasm in everyday life.

Indications:

The Gekko fxs can be used to restore mobility in cases of balance and coordination disorders, as well as limited natural movement patterns. Depending on the recommendation of your child’s therapist, possible indications for riding this tricycle are:

  • Balance disorders/dizziness
  • Joint mobilization, e.g. for arthrosis
  • Neuromuscular diseases e.g. cerebral palsy or muscular dystrophy
  • Paralysis e.g. stroke with hemiplegia, partial paralysis of arm or leg
  • Increase of muscle mass
  • Back pain

The Gekko fxs should be especially considered when a child cannot safely use conventional children’s bicycles, even with standard support wheels, due to its special limitations.

Positive effects:

  • Promotes kinetic coordination
  • Improvement of posture symmetry
  • Improvement of physical performance and condition
  • Compensation for lack of mobility
  • Learning and promoting specific motion sequences
  • Prevention of contractures
  • Promoting general well-being
  • Integration and participation in society

Top Virtues of the Gekko fxs

Sportiness
0%
Comfort
0%
Travel suitability
0%
Everyday strength
0%
Transportability
0%
The OrthoFlex Seat

Ergonomic, Comfortable and Extremely Variable

For children, an ergonomically shaped seat is particularly important. But no two children are the same. With the OrthoFlex seat, we have therefore developed a completely new adaptable seat sturdily integrated into the frame of the Gekko fxs. It is extremely variable and also adapts comfortably to special needs throughout childhood and adolescence. As your child grows, it will not only have longer legs, but also a different back shape and a larger pelvis. When extending the rear part of the frame after a growth boost, you not only increase the distance to the bottom bracket but also the seat depth of the OrthoFlex seat. To adjust the length of the frame independently of the seat, use the front frame extension.

How upright should your child sit? The seat angle can be infinitely adjusted in the range between 48 and 64 degrees – the Gekko fxs allows a much more upright sitting position for rehabilitation and therapy purposes than is the case with recreational recumbents. All these adjustments can be made in just a few simple steps: you only need to open the eye-catching blue quick-releases and adjust the frame and seat as desired.

More support when cornering: A unique feature of the OrthoFlex seat is that you or your care provider can individually adjust the side support and back support to suit the shape of your child’s spine using individually adjustable padding parts. This is because the eight pads are not sewn firmly into the seat, but are inserted in special pockets that you can open and adjust using Velcro fasteners on the sides. The openings are clearly marked by blue stripes. For small riders, simply slide the cushions at the edge of the seat and backrest a little inwards to reduce the effective width of the seat to the correct size. When cornering, the rider feels the lateral forces, unlike when riding an upright bike – which is why the side pads must provide support in the right places. But not only the lateral support, also the support in the area of the lower lumbar vertebrae (lordosis segment) can be individually adjusted by shifting the upholstery parts. For children and teenagers under approx. 1.40 m (4’7″), padding can also be inserted in the neck area to support the head. For taller riders, a separate headrest is available that can be adjusted in height and angle using a quick-release.

For special therapeutic requirements, orthopedic specialists can also adjust the seat with the greatest precision. Because the seat cushions are not sewn in, they can easily be replaced by custom molded back support parts.

Easy Handling by System

The Gekko fxs Easily Unfolds a Lot of Riding Pleasure!

Speeds up not only your heart rate: This tricycle remarkably unfolds into a good deal of riding pleasure. To help you take the Gekko fxs wherever you need it, HP Velotechnik’s engineers have equipped the compact Gekko fxs with an amazingly fast, easy-to-operate, sophisticated folding system.

Particularly useful: All components remain firmly attached to the trike – unlike conventional folding tricycles, where the seat or luggage rack must first be removed and transported separately. All this is made possible by HP Velotechnik’s patented Dual Flat Fold (D.F.F.) folding system, which uses only two quick-release levers for the Gekko fxs. With a little practice, you can fold your Gekko fxs up to 92×57×86 cm compact in a short time (36″x22.5″x34″) For transport by car or train, a practical protective cover is available for the folded Gekko fxs.

Your advantage: After the swift folding, the package can be parked vertically to save space. So you can carry it easily in winding staircases or through train doors. On the platform, you simply wheel the folded Gekko fxs on its integrated transport wheels.

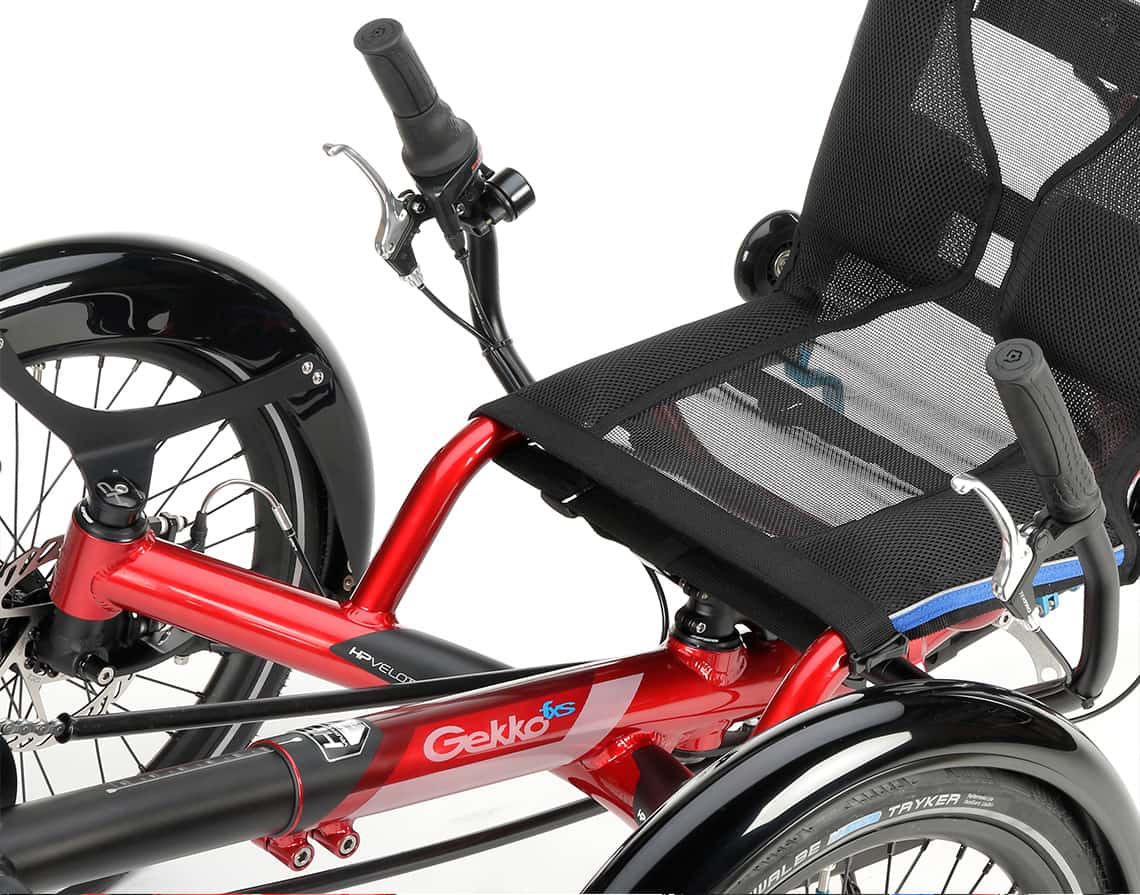

Cunning design: The solid frame construction of the Gekko fxs combines safe road holding with sporty handling, precise steering, low weight, and minimal space requirements. The frame cross member, which is bent far back and positioned close to the seat, and the robust, angle- and width-adjustable handlebar ensure easy entry and exit.

Custom CSS for Advanced Carousel - Do not delete

Details Make the Difference

Gekko fxs: a small tricycle with great equipment as standard!

Accessories

Optional Features for True Individuals

Have you got your own notion of your ideal bike technology? Our modular system enables us to build your trike to meet your needs and desires. A whole range of reliable features and components is available for your trike, all of which have been specially developed to excel in everyday use. Here we show some selected examples; you will find the complete selection in our price lists and catalogs as well as our online configurator.

Configure the ideal trike for your child now

Fast, convenient and informative: With our online configurator you can choose the Gekko fxs‘ components from our extensive modular system. Just a click away: Rehab accessories such as special needs pedals, pushing aids or electric drives.

Facts and Figures

Gekko fxs Technical Data

The outstanding performance of our adaptive kid’s trike is of course based on thoroughly engineered HP Velotechnik technology with precise technical specifications. The detailed figures can be found here in the technical data sheet – from the dimensions to the payload, from the seat height to the appropriate rider size. And of course, we are also happy to show you which colors you can choose for your Gekko fxs.

  • Seat
  • Wheels & Tires
  • Vehicle measurements
  • Colors
  • Miscellaneous
  • Warranty
  • Seat height: 36 cm (14.2")
  • Seat angle: 48–64°
  • Wheel size (front wheel): 20" (ISO 406)
  • Wheel size (rear wheel): 26" (ISO 559)
  • Max. tire width: 5 cm (2")
  • Bottom bracket height: 37–44 cm (14.6"–17.3")
  • Ground clearance: 10 cm (4")
  • Wheelbase: 91,5–98,5 cm (36"–38.8")
  • Track width: 78 cm (31")
  • Width: 83 cm (33")
  • Length: 137–175 cm (54"–69")
  • Height 87 cm (34.3", upright backrest)
  • Handlebar width: 57–63 cm (22.5"–24.8") adjustable
  • Turning circle: 4,55 m (179") outward
  • Folding size: from 92 × 57 × 86 cm (36.2" x 22.4" x 33.9")
special needs exercise recumbent tadpole trike gekko fxs
Standardfarbe: Magma red

Verleihen Sie Ihrem Rad eine persönliche Note: Auf Wunsch können Sie den Rahmen Ihres HP Velotechnik-Liegerades auch mit einer Sonderfarbe ganz nach Ihrem persönlichen Geschmack pulverbeschichten lassen. Sie haben dabei die Auswahl aus hunderten von Farbtönen.

Eine Übersicht und weitere Informationen zu unseren Sonderfarben finden Sie in unserer Farbtabelle.

  • Bottom bracket standard: BSA 68 mm
  • Weight: from 19.5 kg (43 lbs) incl. pedals
  • Payload: max. 100 kg (220 lbs)
  • Frame material: Aluminum 7005 T6 heat treated
  • Rider height: ca. 1,15 – 1,80 m (3'10" – 5'11")
  • German medical aid number: 22.51.02.0061

We are committed to the quality of our products. Therefore we grant a guarantee of 10 years on the frame and the swing arm bearing of our bikes and trikes. For further information, please have a look at our warranty conditions.

They Even Have a catalog? This Is Getting Better and Better!

Would you like to get a detailed insight into the Gekko fxs rehabilitation and therapy trike in our special catalog? Our detailed and richly illustrated Gekko fxs tricycle catalog is a good basis for your consultations with doctor, medical aid provider or health insurance company.

You can browse through the catalog online here to get an initial overview. We will be happy to send you your personal copy in high-quality printing form by post (German language only). So you can read all the advantages of our recumbent tricycle for children, teenagers and small adults at home – without obligation and completely free of charge.
